Introduction to Facility Management Toolkit
If your organization uses a Facilities Management (FM) System, facility information may already be maintained there. The EMS FM toolkit eliminates the need for double entry of facility details and maintenance. Information is automatically updated in EMS to provide the highest level of accuracy and improved communication across departments. This toolkit synchronizes the inventory of space between your facility management systems and EMS to ensure cross-system accuracy.

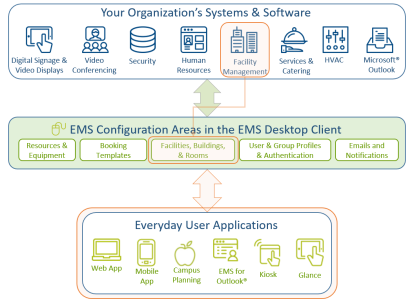

Both EMS and facilities management systems are built upon an inventory of buildings and rooms that forms the basis for meeting and event reservations. The FM toolkit serves as the connection point between these two systems. The client places the file with the facility details in a staging database. The toolkit picks up the file from the staging database and updates the appropriate tables in EMS. As with the HR Toolkit, this automates the creation, maintenance, and inactivation of select building and room properties from an outside data source.
How It Works
Learn about the following:

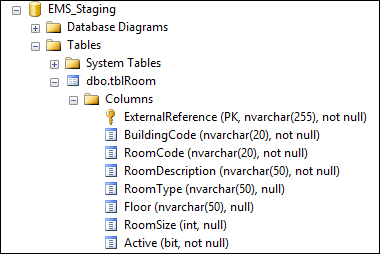

The EMS_Staging database (created by FMTK Staging DB Install.sql) is used to stage room records before they are imported into EMS.
After you identify the FM data source within your organization that will be used to create and maintain your EMS room records, you will be required to define/create a process to import room records into the tblRoom table within EMS_Staging.
The FMTK_Update_Room stored procedure (created by FMTK Update Script.sql) contains all of the logic to create your EMS room data.
The FM Toolkit uses the ExternalReference field in EMS_Staging.tblRoom and the tblRoom.ExternalReference field in the EMS database to determine whether a record needs to be added, updated, or inactivated.
Records are imported into EMS from the EMS_Staging database according to the specifications outlined in the table below.
|
ExternalReference
|
ExternalReference
|
Required. Primary Key. Unique identifier that links a room record in your FM system with a room record in EMS.
|
|
BuildingCode
|
BuildingID
|
BuildingCode is matched against tblBuilding.BuildingCode to derive the correct Building ID to be stored in tblRoom.BuildingID. If BuildingCode can’t be matched in tblBuilding, the room record WILL NOT be created in EMS.
|
|
RoomCode
|
Room
|
Required
|
|
RoomDescription
|
Description
|
Required
|
|
RoomType
|
RoomType
|
RoomType is matched against tblCategoryGroup.Description (Room Type table) to derive the correct Room Type ID to be stored in tblRoom.RoomType. If the room type can’t be matched in tblCategoryGroup, a new room type record WILL be created.
|
|
Floor
|
FloorID
|
Floor is matched against tblFloor.Description to derive the correct Floor ID to be stored in tblRoom.FloorID. If the floor can’t be matched in tblFloor, a new floor record WILL be created.
|
|
RoomSize
|
RoomSize
|
Optional
|
|
Active
|
Active
|
Active = 1. Inactive = 0.
|
Rooms – If the ExternalReference value in EMS_Staging.tblRoom is not found on an existing room record in EMS, a new room will be created.
Existing EMS clients wanting to implement the FM Toolkit must “synchronize” existing EMS rooms before activating the toolkit by adding a valid ExternalReference value in tblRoom. Ignoring this step will result in duplicate records.
Room Types – If the RoomType value in EMS_Staging.tblRoom is not found in the list of room types in EMS, a new room type will be created.
Floors – If the Floor value for a room record in EMS_Staging.tblRoom is not found in the list of floors in EMS, a new floor will be created.
Buildings – The FM Toolkit does not add or maintain building records in EMS.
If the ExternalReference value in EMS_Staging.tblRoom is found on an existing room record in EMS, the room will be updated with any changes.
A room gets inactivated if one of the two conditions outlined below is met:
- If an existing room record in EMS does not exist in EMS_Staging.tblRoom (based on ExternalReference).
- If a room record’s Active status in EMS_Staging.tblRoom = 0.
Room records within EMS with an empty External Reference field are excluded from processing. Rooms that are not included in your data feed can be added and maintained manually within EMS and will not be impacted by the FM Toolkit.
EMS_Staging Database
